Specifications
Certifications:
CE ETA-15/0338
Opening (mm) - Weight:
-
RHT7010: 700 x 1000 mm / 56 kg (Not available in a Black Edition)
- RHT7014: 700 x 1400 mm / 68 kg
- RHT1010: 1000 x 1000 mm / 65 kg
- RHT1015: 1000 x 1500 mm / 84 kg
- RHT1020: 1000 x 2000 mm / 101 kg
- RHT1025: 1000 x 2500 mm / 120 kg
- RHT1030: 1000 x 3000 mm / 134 kg
Hinge side = long side

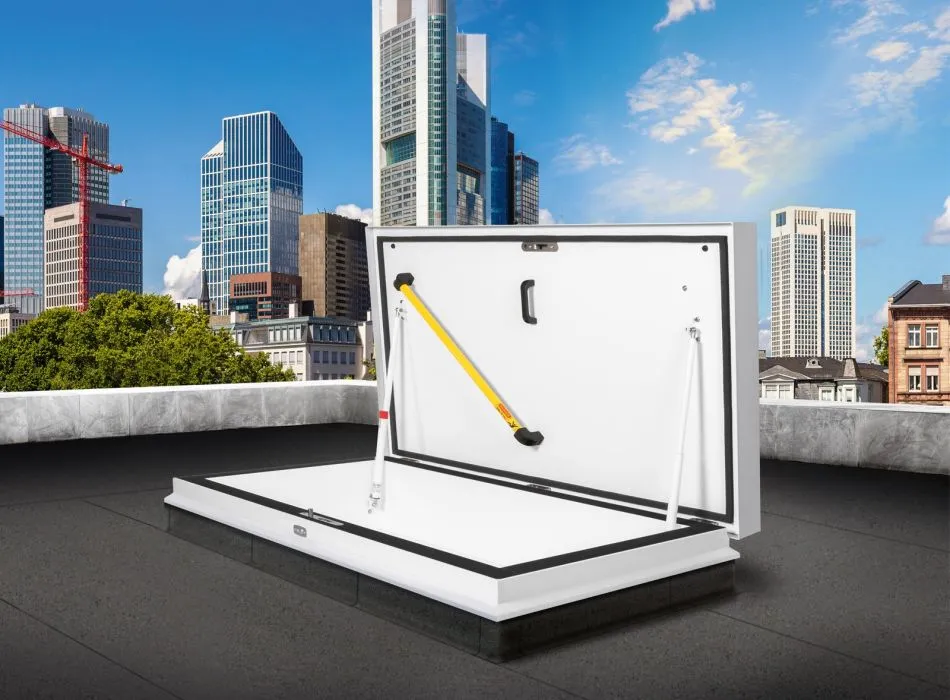

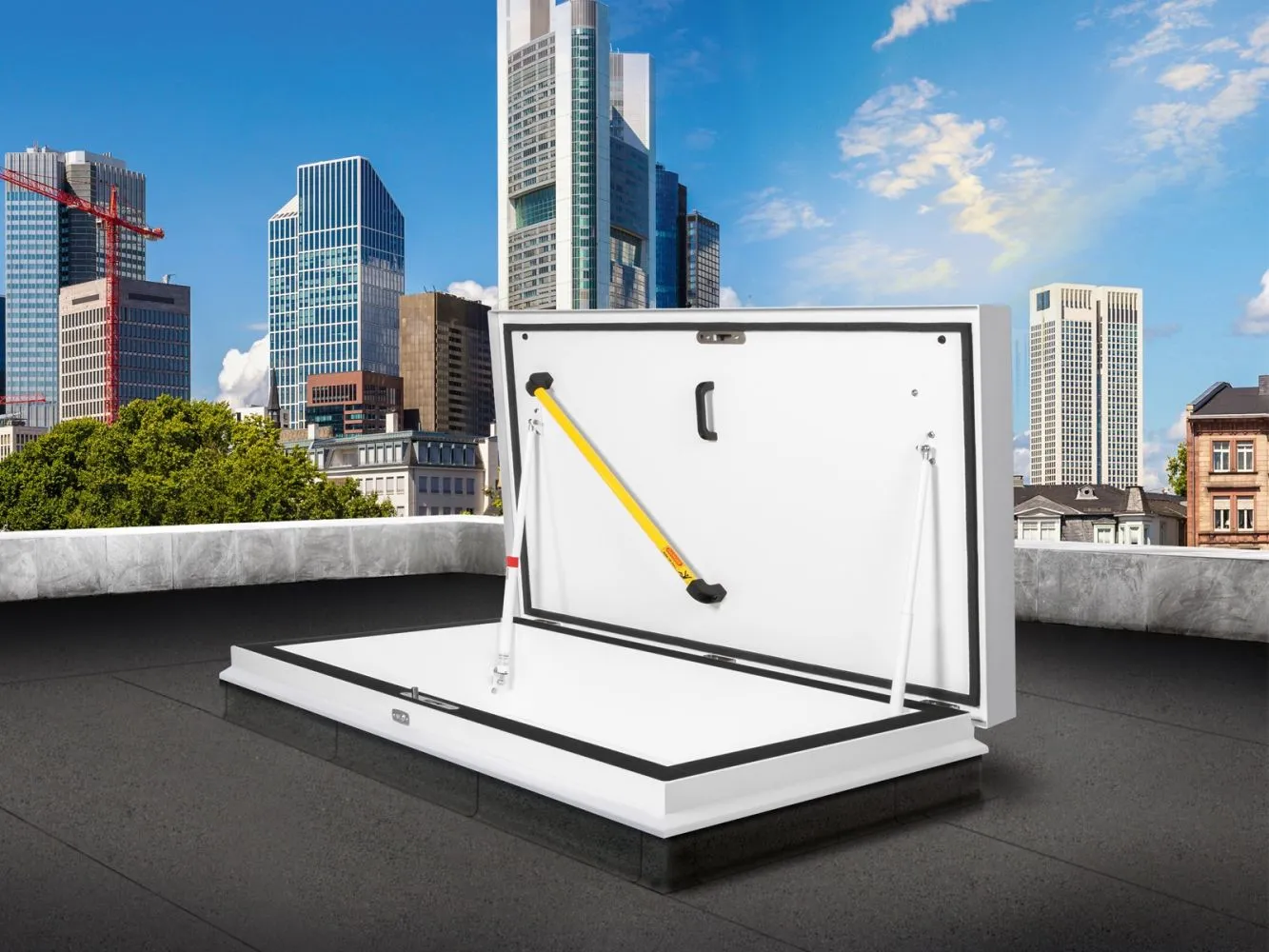

Product features standard roof hatch RHT:
- Delivered fully assembled
- Thermal separated and insulated construction
- Counterbalancing system for assisted opening and controlled closing
- Wind and weather tight sealing between lid and curb
- Lid that engages automatically in open position, with one hand release
- Closure with Gorter hardware and stainless steel Euro cylinder lock, inside and outside operation
- Diagonal handrail in Gorter yellow on the inside of the lid provides extra grip when stepping in and out
Performance according to CE (ETA-15/0338):
- Resistance to permanent loads (Eurocode EN 1993-1-1): 1050 kg/m²
-
Insulating (EN-ISO10077-2): Uw ≤ 0.32 W/(m².K)
- Sound reduction (EN-ISO140-3): 26 dB
- Watertightness (EN 12208): Class E 650
- Resistance to wind load (EN 12210): Class E 3000
- Resistance to snow loads (EN 1991-1-3): 3.97kN/m²
- Impact hard body (EN 356): Class P5A
- Impact soft body (EN 13049): Class 5
- Air permeability (EN 12207): Class 3

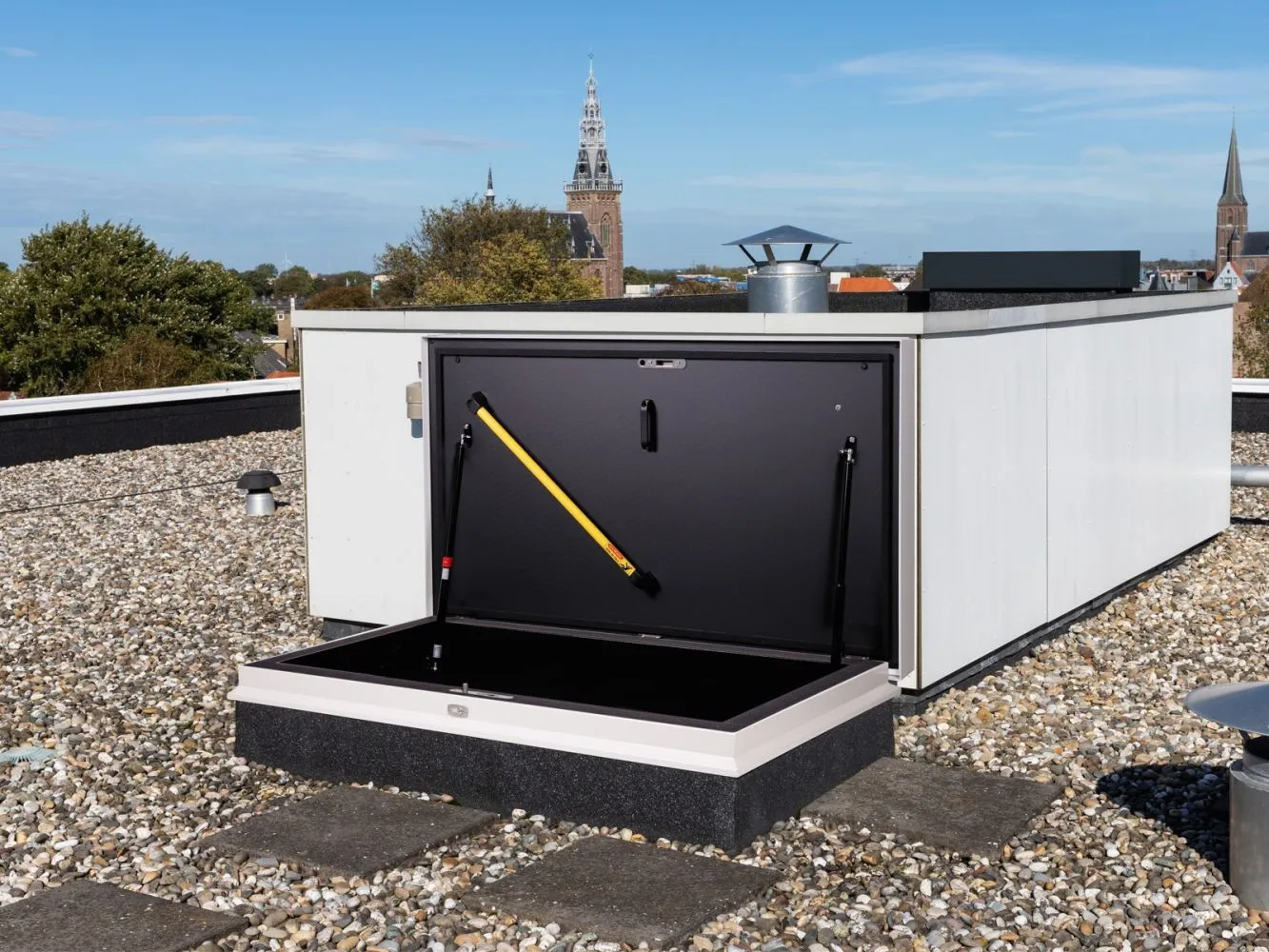

RHT powder coating:
Outside: powder coated in RAL7047
Inside: powder coated in white RAL 9010 (optional black RAL9004)
Options
Gorter® Electrical Operation of Roof Hatches
Standard Electrical operation - GT35
The Gorter GT35 electrical operation is a solution, which can be fitted on any standard Gorter RHT roof hatch. The two powerful electric motors are always fitted as a pair on both sides of the lid.
Suitable for
- Roof hatches type RHT standard
Operation and control 230Vac
The Gorter GT35 is a system with two motors and a control unit. The system comes standard with a wireless remote control and a compact control panel. The keypad connected with signal cable can be installed remote from control unit.
Dimensions:
Control unit: 265 x 105 x 40 mm
Keypad: +/- 70 x 50 x 10 mm
Length of signal/power cable motors: 2 m
Electrical installation:
The drives and the wiring must be installed by a certified installer
Operation for a hatch with double lids
Depending on the access door type, the weight of the cover and the application, we can install one or more gear rack drives. These drives are available in 24 Vdc or 230 Vac.
Operation and control 230Vac
This is the simplest system with 1 motor. It can be operated with an integrated or surface-mounted switch, not included.
Operation and control 24Vdc
Operation of one or more drives is controlled by a control box with rectifier that is connected to the electricity network.
Features
- Communication with central alarm system, possibly combined with emergency switch
- Programmable
- Operation control of other objects
- Control by automatic detectors - smoke, rain, wind, fire etc.
- Automatic sequence control of two covers that are overlapping
- Automatic stop in case of unequal load or overload
- etc.
Depending on the features we will recommend a suitable control box type.
Emergency hatches and doors:
It is of life importance that an emergency door opens after a break down of the electrical system. For those reasons a control box can be provided with a built-in emergency power pack.
Electrical installation:
The drives and the wiring must be installed by a certified installer.
Downloads
Documentation:
Roof hatch RHT brochure2.71 MB
Technical Data Sheet - Roof Hatches RHT / RHTEI / RHTX154.82 KB
Technical Data Sheet - Reset / Calibration GT35 / GT50202.93 KB
Manuals:
User information roof hatches2.30 MB
Drawings:
 |
 |
 |
 |
 |
|
|
|
Acrobat |
AutoCAD .dwg |
Sketchup .skp |
REVIT .rfa |
REVIT
.rvt |
REVIT
.ifc |
|
| RHT7090 |  |
 |
 |
 |
 |
 |
| RHT7010 | |
|
|
|
|
|
| RHT7014 | |
|
|
|
|
|
| RHT1010 | |
|
|
|
|
|
| RHT1015 | |
|
|
|
|
|
| RHT1020 | |
|
|
|
|
|
| RHT1025 | |
|
|
|
|
|
| RHT1030 | |
|
|
|
|
|
Watch the Revit instruction video
Installation roof hatch on concrete upstand47.71 KB
Installation roof hatch on concrete or steel roof53.02 KB
Installation roof hatch on concrete roof46.82 KB
Installation roof hatch on concrete roof insulated53.98 KB
Certificates:
Declaration of performance CE roof hatch RHT44.71 KB
KOMO Certificate: Roof hatch RHT120.07 KB
TÜV NORD Certificate: Roof hatch with ladder, scissor stairs and fixed stairs670.29 KB
EuroSolid Report: Thermal performance Roof hatch RHT525.05 KB
Peutz Report: Sound insulation roof hatch RHT1.14 MB
