Types of roof hatches
Roof hatch, standard roof access, and special versions
Discover the different types of roof hatches offered by Gorter®! From standard to custom designs, our roof hatches are perfect for safe access to flat roofs.

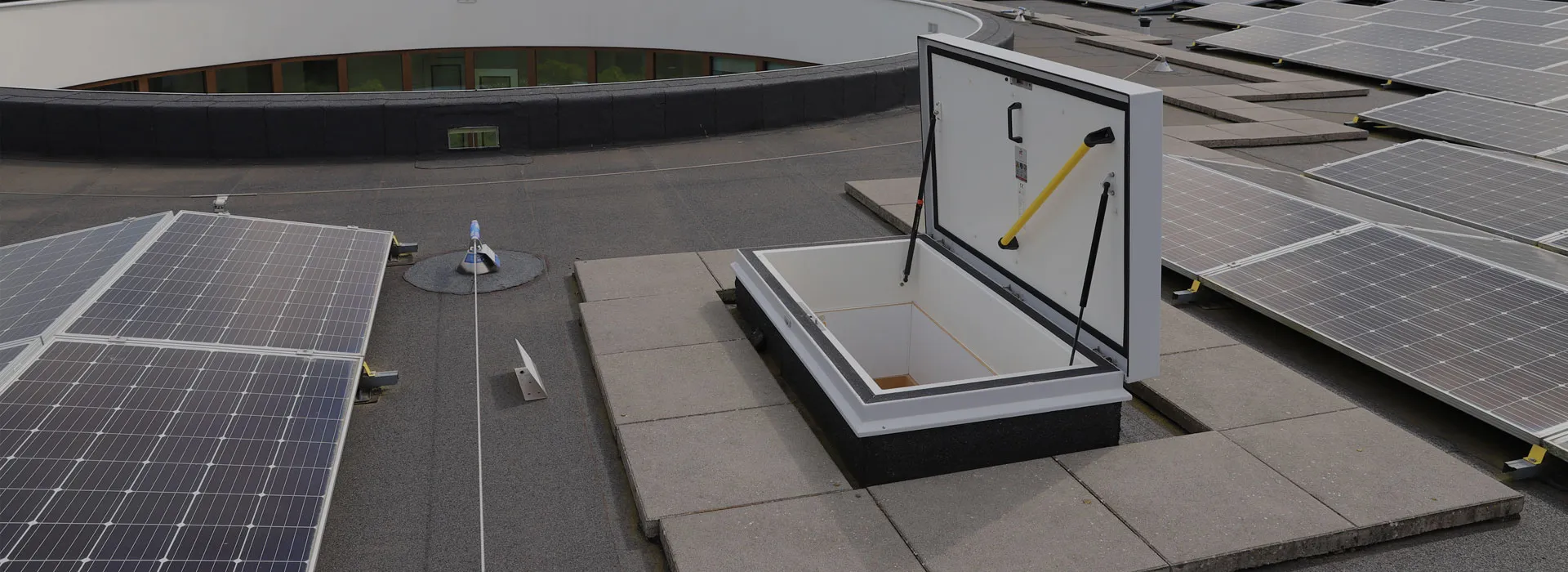

For safe roof access
Gorter®roof hatches
Gorter® has been specialising in roof hatches for over 20 years. In addition to the standard versions, Gorter also supplies glazed, fire resistant, explosion vents and roof hatches in special dimensions. Almost all versions are available in combination with a ladder, fixed staircase, or scissor staircase.
Unique properties and CE mark!
Gorter roof hatches have a unique thermally-insulated construction providing insulating properties that fit in well in many instances with those of modern roofs. The RHT, RHTG and RHTEP aluminium roof hatches are also the only ones on the market certified CE (ETA) and come with a 10-year warranty as standard. The Gorter combinations are also TÜV NORD-certified.
Patented, extremely strong construction
Safe operation and grip
10-year warranty as standard
Made in Holland
Combinations are TÜV NORD certified
Proven high insulation value CE (ETA-15/0338)
Gorter® roof hatch standard very complete
All Gorter roof hatches have a cover which is completely windproof and has all-round double sealing. The RHT hatch comes with a Euro cylinder lock and, in the case of lengths over 1,400 mm, the roof hatch also has three-point locking.
Standard for all roof hatches
All Gorter roof hatches are fitted as standard with a number of convenient and safety-enhancing fittings. For instance, there are easy opening features with a counterbalancing system and controlled closing. The hatch features an automatic lock in the open position and can always be safely and easily operated with one hand.
Roof hatches with CE-ETA: What does this mean?
At Gorter®, safety, sustainability, and performance are key. That’s why our roof hatches, from standard to extra-insulated and glazed, come with a CE marking and a European Technical Assessment (ETA).
What is CE-ETA?
The CE marking is mandatory in the EU and indicates that a product meets strict health, environmental, and safety regulations. When no harmonized European standard (hEN) is available, a product is assessed according to a European Assessment Document (EAD), which leads to a European Technical Assessment (ETA). Gorter® roof hatches have received this assessment, confirming their quality and performance.
Complete solution

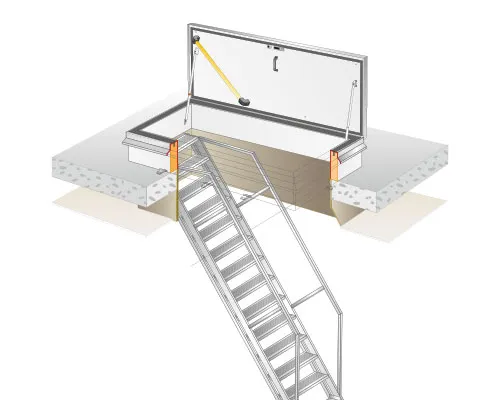

Gorter combinations - with ladder, scissor staircase, or fixed staircase
A total solution for your roof access. Gorter roof hatches can be supplied in combination with a suitable ladder, scissor stair or fixed staircase. With this combination, the dimensions are matched perfectly to each other and maximum safety is guaranteed.
Gorter combinations are TÜV NORD and ABOMA certified. Using the documents supplied, it is easy to meet any requirements set out in statutory safety regulations, such as the Risk Inventory and Evaluation (RIE).
Scissor stair
A roof access with a scissor stairs is foldable and concealed in the ceiling.
Roof access with the Gorter translucent roof hatch
All Gorter translucent roof hatches have a cover which is completely windproof and has all-round double sealing. The translucent hatch is opened and closed by two powerful and compact electric motors.
Translucent and standard in aluminium
The Gorter translucent roof hatches are manufactured from high-grade aluminium. This makes the construction strong and durable. The roof hatch also has a durable powder coating inside and outside to keep maintenance to a minimum.
Options and special versions
All roof hatches can be fitted with an electric control with a link to any building systems and sensors in place. Aside from the standard RAL colours, our roof hatches can be supplied in the RAL colour of your choice so they fit in with the overall design. The roof hatches are also available in special designs, such as fire-resistant or explosion relief.
Usage
Roof hatches can be used as escape hatches, but in most situations, they provide convenient and cost-effective access to roof terraces, cooling systems, lift machine rooms, solar collectors and other facilities on rooftops.
No thermal bridges
Convenient and
unbeatable insulation

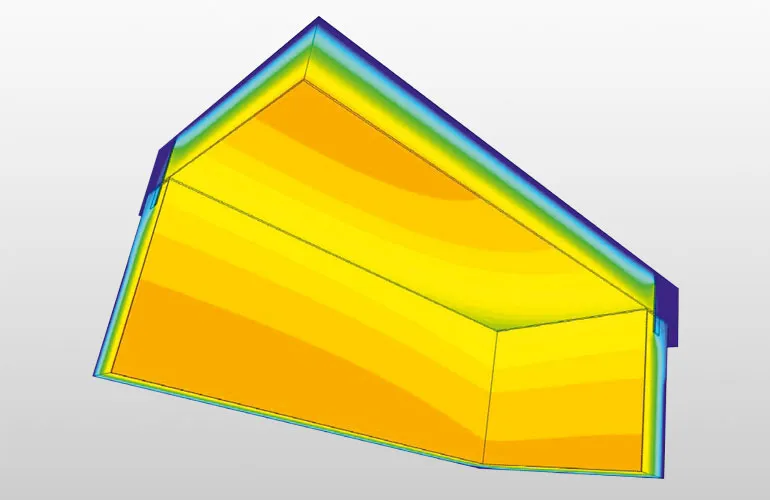

The Gorter® roof hatches are designed with a fully thermally separated construction, meaning that the inner and outer sides of the hatch have no direct connection. This effectively prevents heat loss and keeps the insulation value consistently high throughout the entire construction.
For cold and warm climates
The unique structure provides unparalleled insulation properties, avoiding thermal bridges and significantly improving the building’s energy efficiency. Thanks to this advanced technology, Gorter® roof hatches offer excellent performance in both cold and warm climates, contributing to lower energy costs and a more sustainable building.
Are you interested in the standard roof hatch?
Request a quote here or view specifications.
